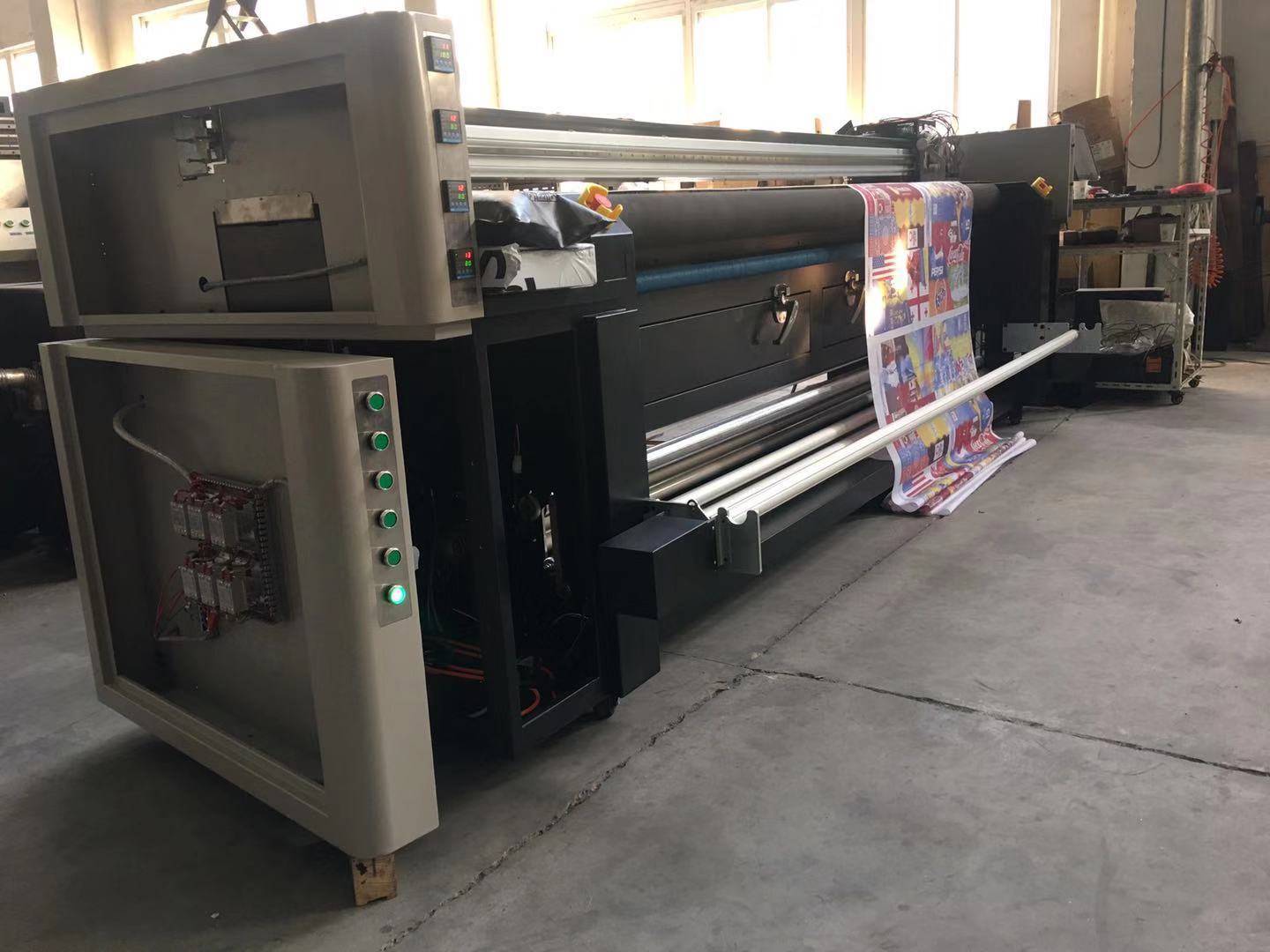

Product name: Hot sale 2.0 m digital textile printing machine with three Epson
4720 heads
Parameters:
| Product Parameter |
| Model type | CSR2000 |
| Print head | 3 pieces Epson 4720 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2100mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Printing Speed:
Printing resolution and speed
| Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h |
|
| 720*1220dpi(4 pass) 45m2/h |
|
720*1800dpi(6 pass) 35m2/h
|
Automatic feeding and collecting structure:
1,Intelligent infrared heater and fan drying system;
2,The machine through different quality tests is stable and
competent enough for mass production requirement.
3,No Pinch roller, let the fabric no wrinkle and print smoothly
4,Keep the fabric good air permeability after sublimation
5,Printing groove designed specially for fabric printing to collect
waste ink and keep
fabric clean.
6,Patented ink tanks keep ink supply constantly.
Advantages :
- Direct printing on fabric,no need any transfer paper
- Import textile pigment ink,it is helpful for enviroment.
- High speed can reach 65 sqm / hour in 3 pass 1800 Dpi resolution
- Working process is simple, one person can operates with high
efficency and save time.
- Low cost, liner breaking the highest costs performance
- All-in -one printer,no need wash,dryer and steam.
- Filter fan collect waste gas to avoid the ink drip down.
- Easy to operate,engineers service for you online in 24h.
How To Order:
Inquriy-------Quotation-------Order-------Production-------Quality
Control-------Packing-------Shipping-------Delivery
Applications:
Service:
1)Customized Service:We Can Provide Customized Production and
Packing for You!
2)Print Service:
We Also Provide FREE Printing Samples for You!
3)Training Service:
We Provide FREE Training for Our Clients! Even can Send Engineer to
Oversea Local Customer!
4)Guarantee Service:
We Provide Lifetime Warranty for All MT Industry Machine Models!
5)Solution Service:
The Most Important We Have Digital Printing Solution Ability
We Have Provided Many Digital Inkjet Printing Solutions for Over 30
Clients Per Year! Some of Them are Very Famous Printing Company
